DLB SERIES-FLOOR MOUNTED RESIDENTIAL LITHIUM BATTERY 10KWH-51.2V200AH,15KWH-51.2V300AH

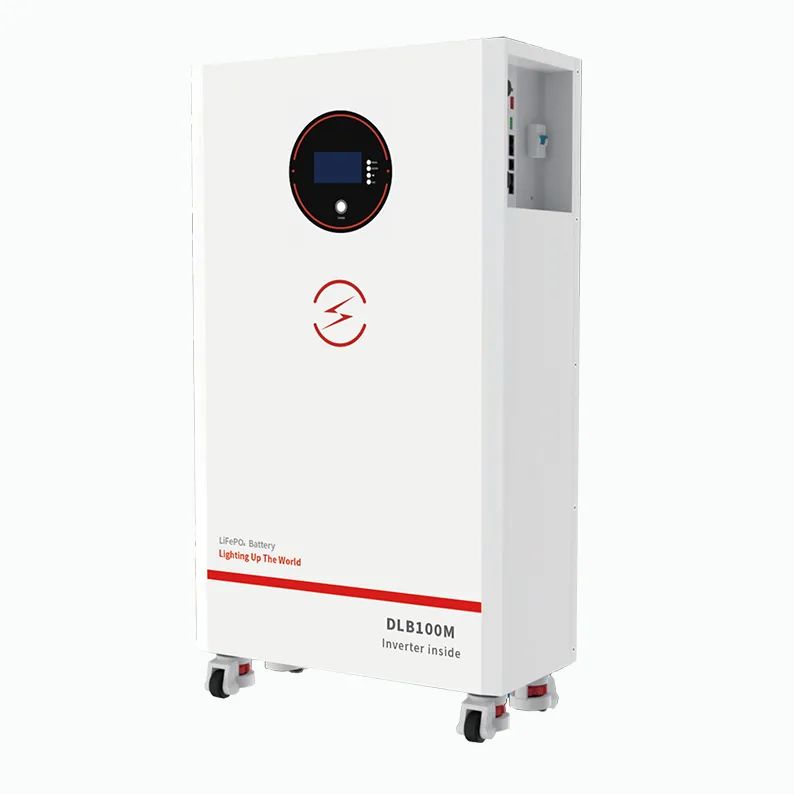

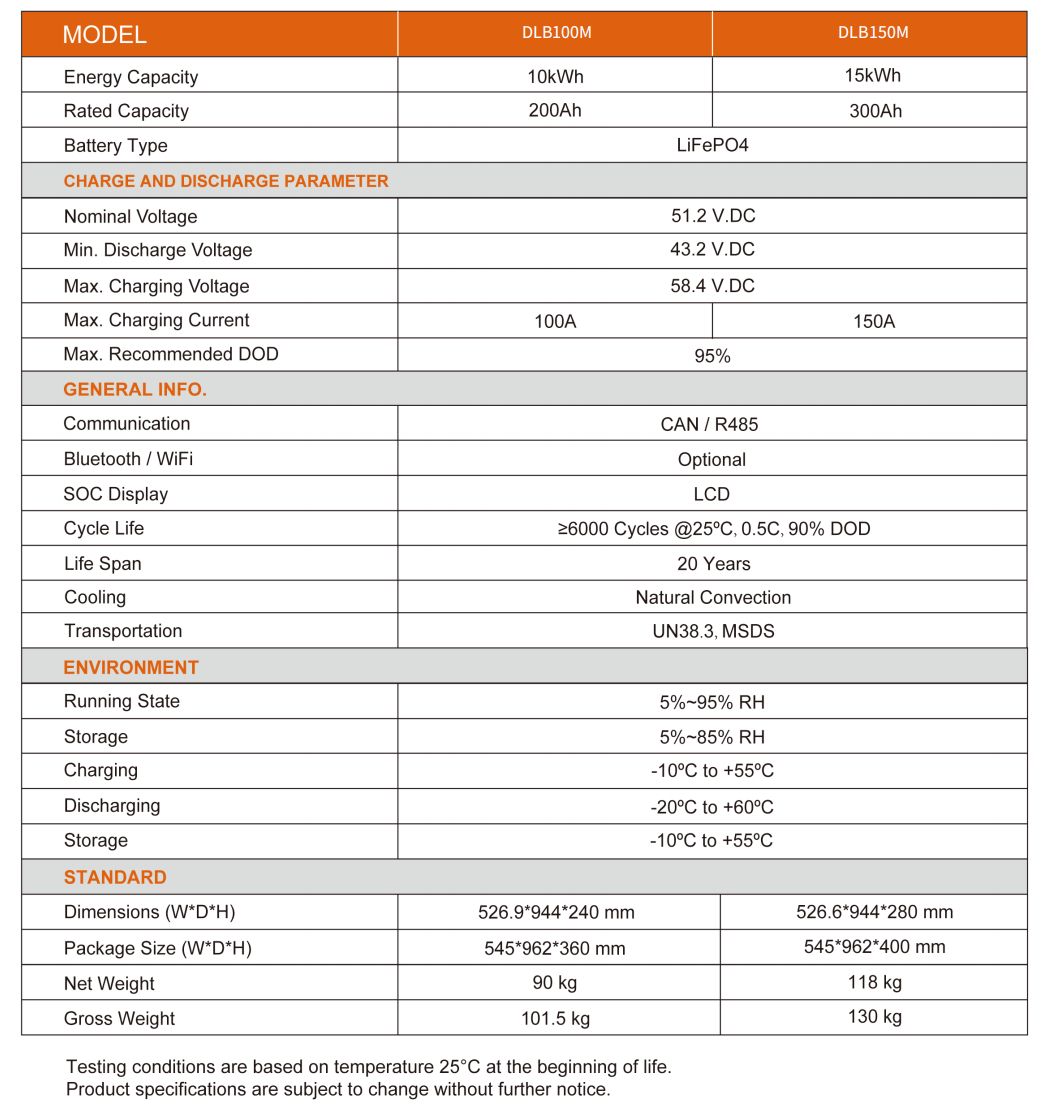

DLB100M

Energy Capacity：10kWh

Rated Capacity：200Ah

Battery Type：LiFePO4

Nominal Voltage：51.2 V.DC

Min. Discharge Voltage：43.2 V.DC

Max. Charging Voltage：58.4 V.DC

Max. Charging Current：100A

Max. Recommended DOD：95%

Communication：CAN / R485

Bluetooth / WiFi：Optional

SOC Display：LCD

Cycle Life：≥6000 Cycles @25℃, 0.5C, 90% DOD

Life Span：20 Years

Cooling：Natural Convection

Transportation：UN38.3, MSDS

Running State：5%~95% RH

Storage (Humidity)：5%~85% RH

Charging Temperature：-10℃ to +55℃

Discharging Temperature：-20℃ to +60℃

Storage Temperature：-10℃ to +55℃

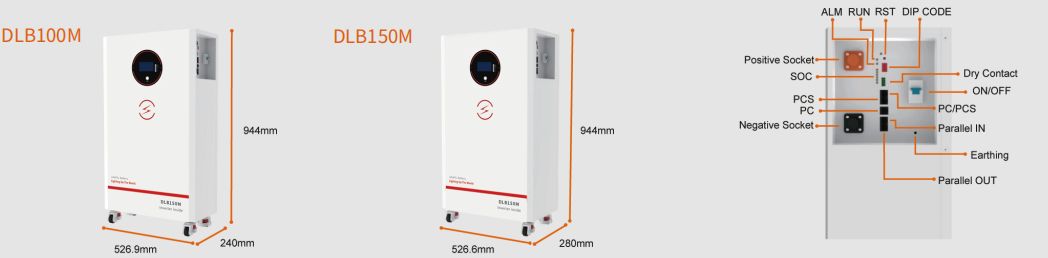

Dimensions (WDH)：526.9*944*240 mm

Package Size (WDH)：545*962*360 mm

Net Weight：90 kg

Gross Weight：101.5 kg

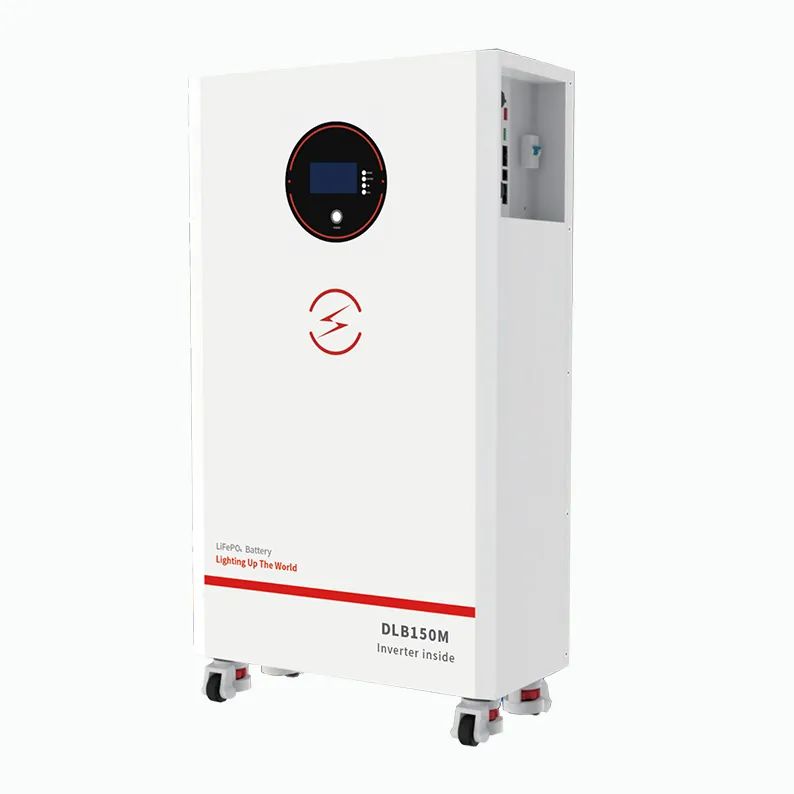

DLB150M

Energy Capacity：15kWh

Rated Capacity：300Ah

Battery Type：LiFePO4

Nominal Voltage：51.2 V.DC

Min. Discharge Voltage：43.2 V.DC

Max. Charging Voltage：58.4 V.DC

Max. Charging Current：150A

Max. Recommended DOD：95%

Communication：CAN / R485

Bluetooth / WiFi：Optional

SOC Display：LCD

Cycle Life：≥6000 Cycles @25℃, 0.5C, 90% DOD

Life Span：20 Years

Cooling：Natural Convection

Transportation：UN38.3, MSDS

Running State：5%~95% RH

Storage (Humidity)：5%~85% RH

Charging Temperature：-10℃ to +55℃

Discharging Temperature：-20℃ to +60℃

Storage Temperature：-10℃ to +55℃

Dimensions (WDH)：526.6*944*280 mm

Package Size (WDH)：545*962*400 mm

Net Weight：118 kg

Gross Weight：130 kg
