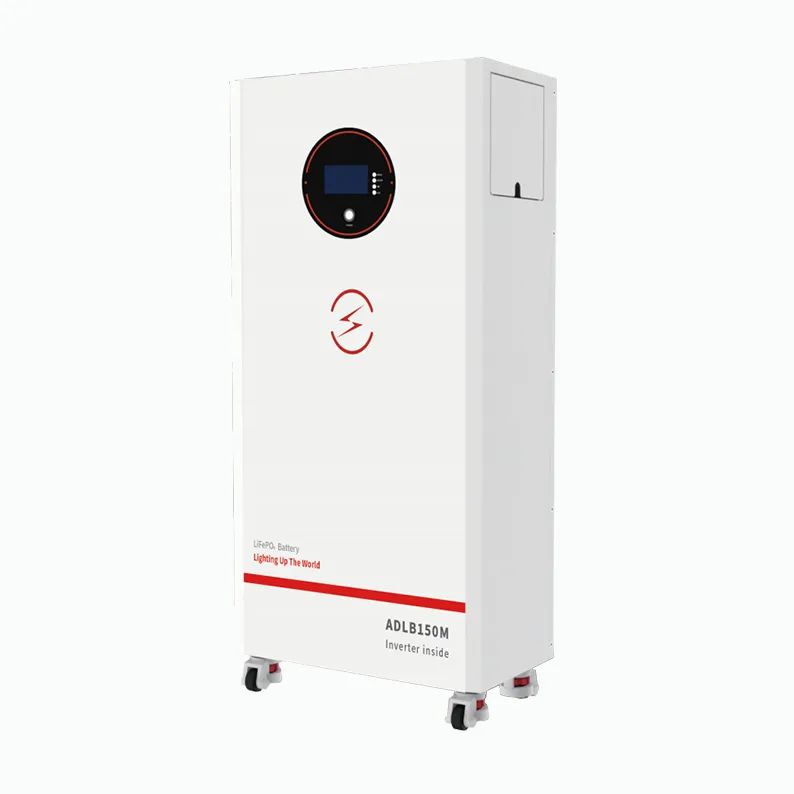

ADLB SERIES-FLOOR MOUNTED RESIDENTIAL ALL-IN-ONE LITHIUM BATTERY AC-5.5KW-10KWH-51.2V200AH,AC-5.5KW-15KWH-51.2V300AH

ADLB SERIES-FLOOR MOUNTED RESIDENTIAL ALL-IN-ONE LITHIUM BATTERY AC-5.5KW-10KWH-51.2V200AH,AC-5.5KW-15KWH-51.2V300AH ADLB100M Inverter:5.5KW Single Phase PV:6KW Battery:51.2V200AH ADWLB150M Inverter:5.5KW Single Phase PV:6KW Battery:51.2 V300AH

Tel：+86 15366425298

Product Details

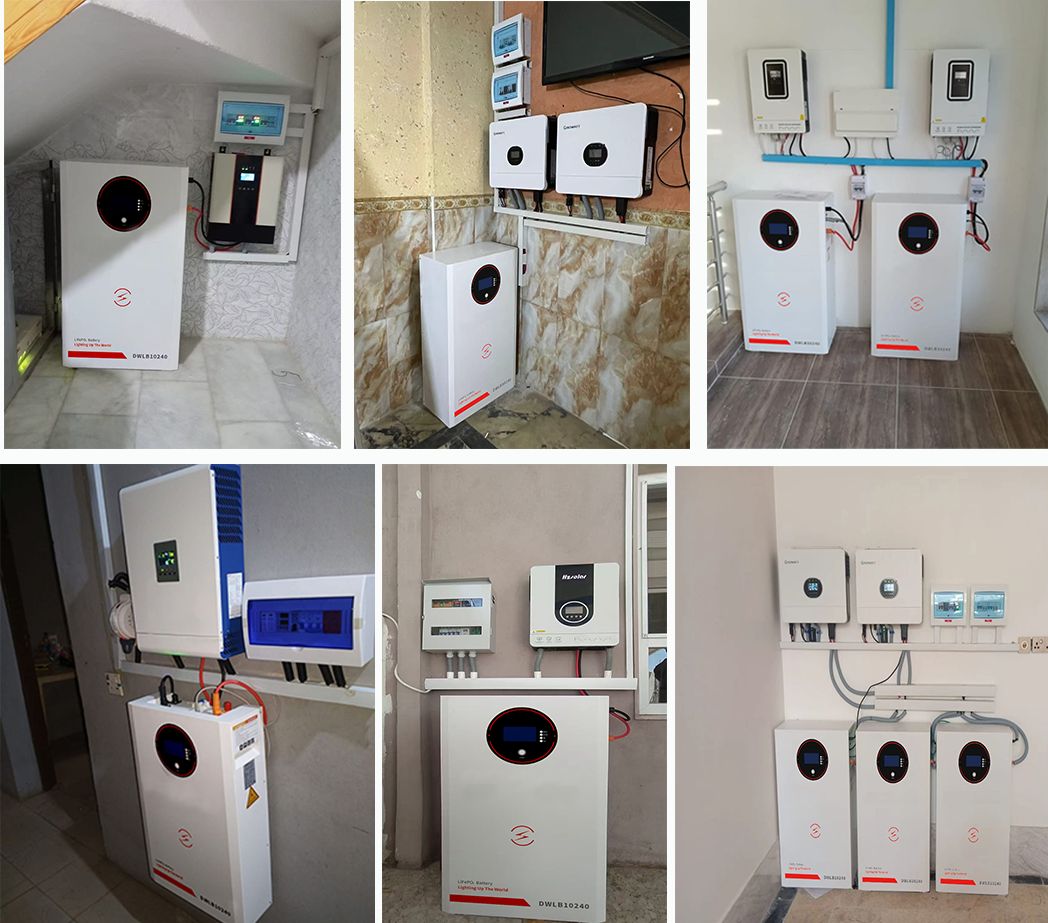

6 _____.jpg

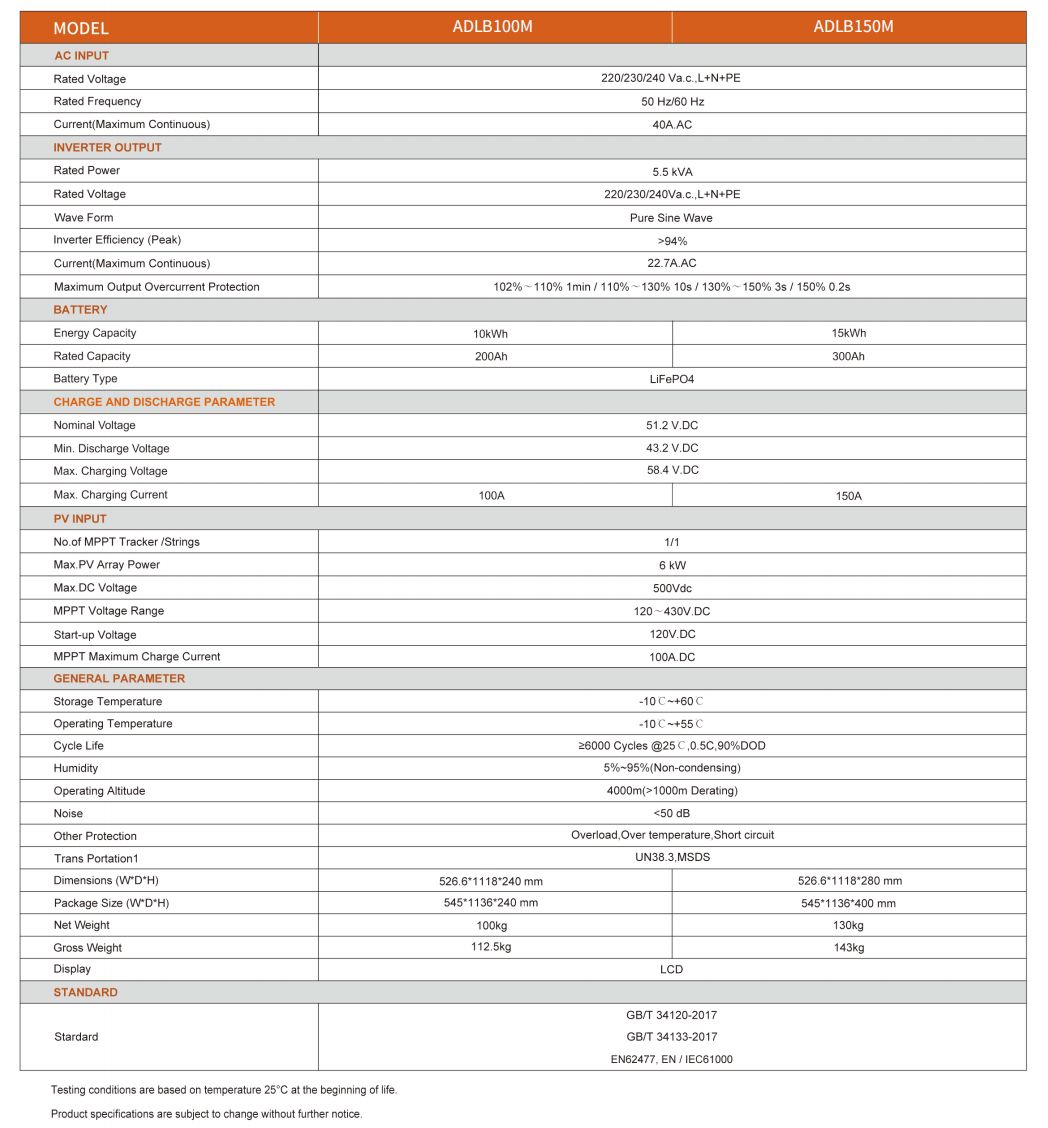

ADBL100M

AC INPUT

Rated Voltage：220/230/240 Va c, L+N+PE

Rated Frequency：50 Hz/60 Hz

Current(Maximum Continuous)：40A.AC

INVERTER OUTPUT

Rated Power：5.5 kVA

Rated Voltage：220/230/240Va c, L+N+PE

Wave Form：Pure Sine Wave

Inverter Efficiency (Peak)：>94%

Current(Maximum Continuous)：22.7A.AC

Maximum Output Overcurrent Protection：102%~110% 1min / 110%~130% 10s / 130%~150% 3s / 150% 0.2s

BATTERY

Energy Capacity：10kWh

Rated Capacity：200Ah

Battery Type：LiFePO4

CHARGE AND DISCHARGE PARAMETER

Nominal Voltage：51.2 V.DC

Min. Discharge Voltage：43.2 V.DC

Max. Charging Voltage：58.4 V.DC

Max. Charging Current：100A

PV INPUT

No. of MPPT Tracker /Strings：1/1

Max.PV Array Power：6 kW

Max. DC Voltage：500Vdc

MPPT Voltage Range：120~430V.DC

Start-up Voltage：120V.DC

MPPT Maximum Charge Current：100A DC

GENERAL PARAMETER

Storage Temperature：-10℃~+60℃

Operating Temperature：-10℃~+55℃

Cycle Life：≥6000 Cycles @25℃, 0.5C,90%DOD

Humidity：5%~95%(Non-condensing)

Operating Altitude：4000m(<1000m Derating)

Noise：<50 dB

Other Protection：Overload,Over temperature,Short circuit

Trans Portation1：UN38.3,MSDS

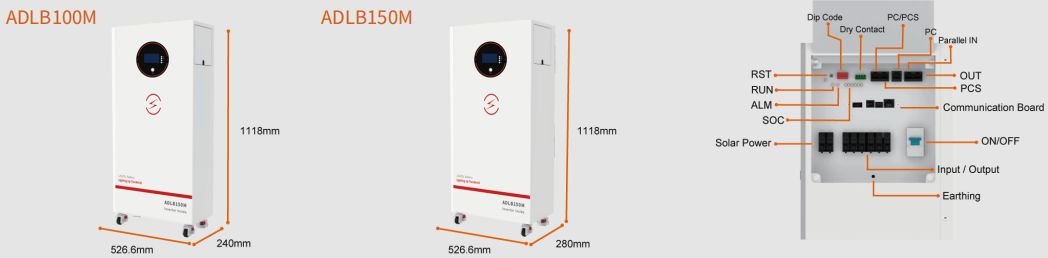

Dimensions (WDH)：526.6*1118*240 mm

Package Size (WDH)：545*1136*240 mm

Net Weight：100kg

Gross Weight：112.5kg

Display：LCD

ADBL150M
