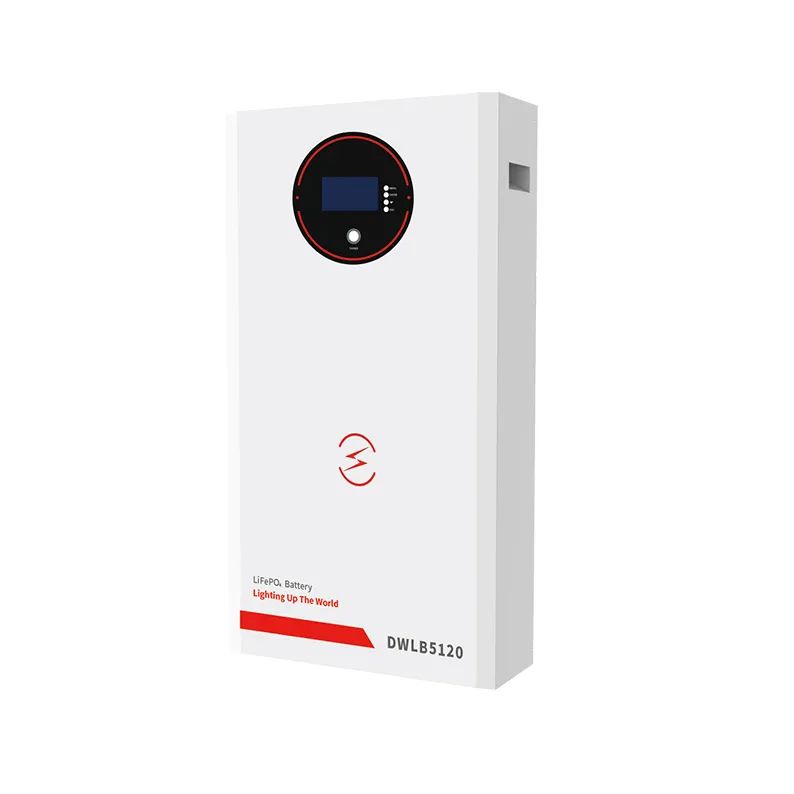

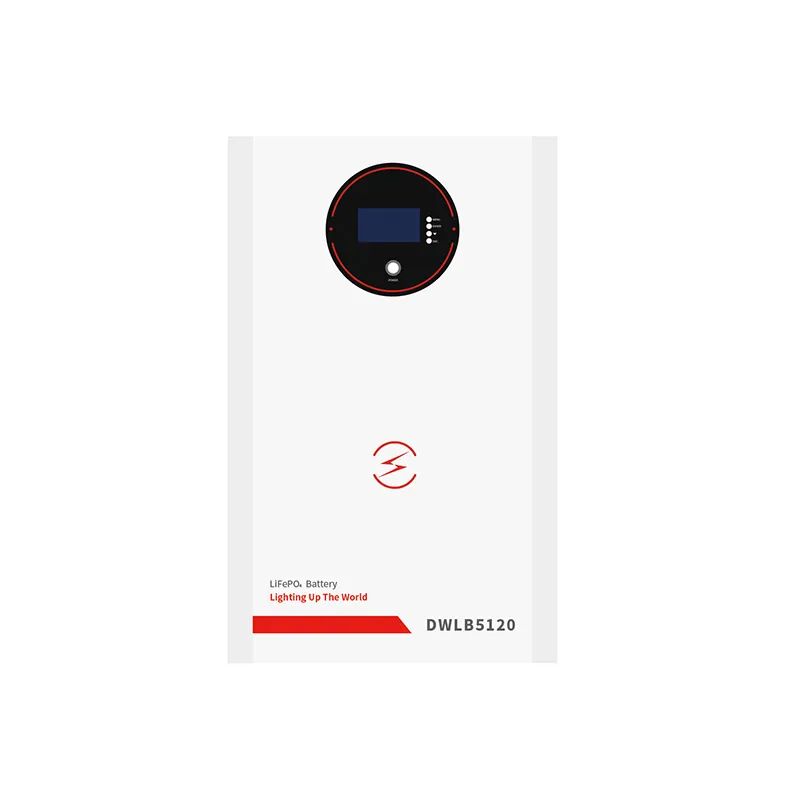

DWLB SERIES-WALL MOUNTED RESIDENTIAL LITHIUM BATTERY 5KWH 10KWH 48V 24V 51.2V 25.6V

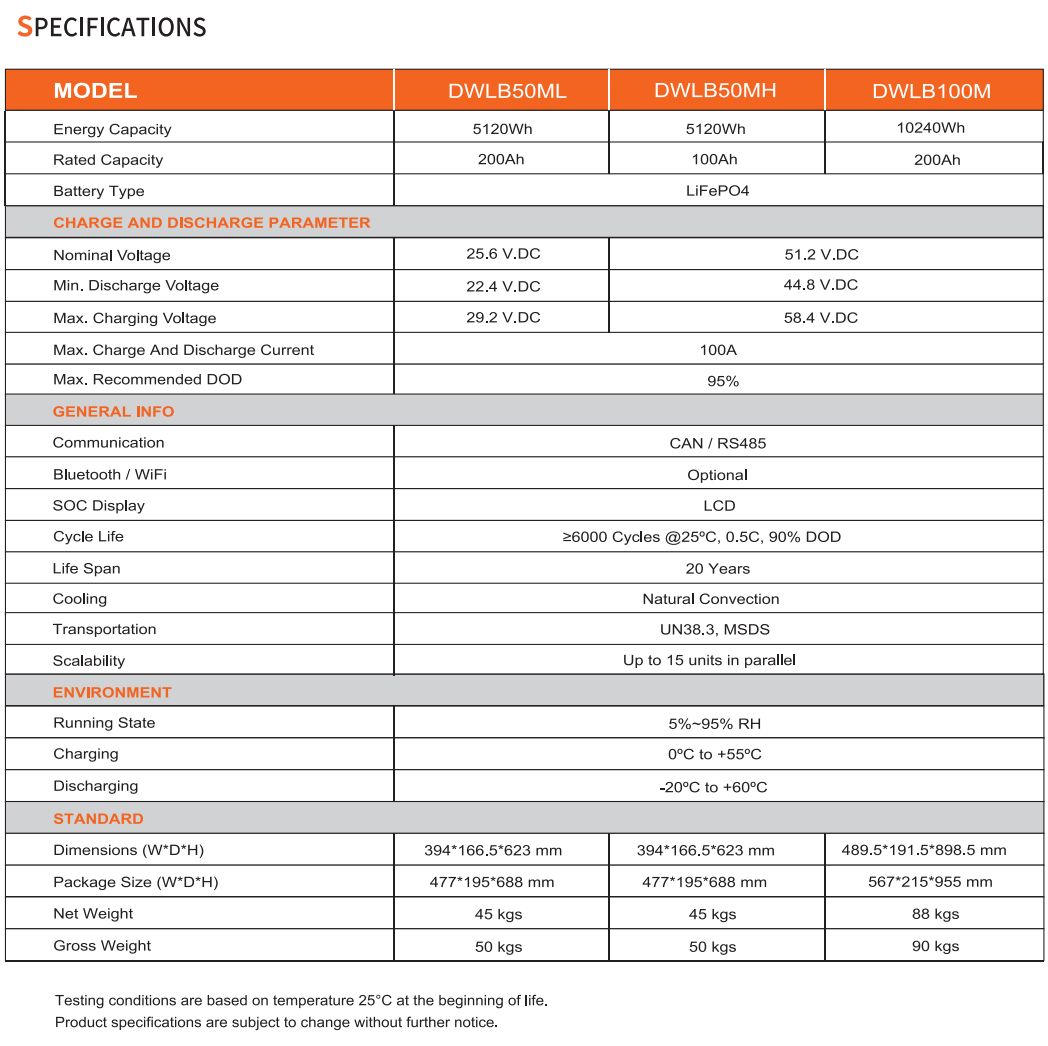

DWLB50ML

Energy Capacity: 5120Wh

Rated Capacity: 200Ah

Battery Type: LiFePO4

Charge and Discharge Parameter:

Nominal Voltage: 25.6 V.DC

Min. Discharge Voltage: 22.4 V.DC

Max. Charging Voltage: 29.2 V.DC

Max. Charge And Discharge Current: 100A

Max. Recommended DOD: 95%

General Info:

Communication: CAN / RS485

Bluetooth / WiFi: Optional

SOC Display: LCD

Cycle Life: ≥6000 Cycles @25℃, 0.5C, 90% DOD

Life Span: 20 Years

Cooling: Natural Convection

Transportation: UN38.3, MSDS

Scalability: Up to 15 units in parallel

Environment:

Running State: 5% – 95% RH

Charging: 0℃ to +55℃

Discharging: -20℃ to +60℃

Standard:

Dimensions (WDH): 394166.5623 mm

Package Size (WDH): 477195688 mm

Net Weight: 45 kgs

Gross Weight: 50 kgs

DWLB50MH

Energy Capacity: 5120Wh

Rated Capacity: 100Ah

Battery Type: LiFePO4

Charge and Discharge Parameter:

Nominal Voltage: 51.2 V.DC

Min. Discharge Voltage: 44.8 V.DC

Max. Charging Voltage: 58.4 V.DC

Max. Charge And Discharge Current: 100A

Max. Recommended DOD: 95%

General Info:

Communication: CAN / RS485

Bluetooth / WiFi: Optional

SOC Display: LCD

Cycle Life: ≥6000 Cycles @25℃, 0.5C, 90% DOD

Life Span: 20 Years

Cooling: Natural Convection

Transportation: UN38.3, MSDS

Scalability: Up to 15 units in parallel

Environment:

Running State: 5% – 95% RH

Charging: 0℃ to +55℃

Discharging: -20℃ to +60℃

Standard:

Dimensions (WDH): 394166.5623 mm

Package Size (WDH): 477195688 mm

Net Weight: 45 kgs

Gross Weight: 50 kgs

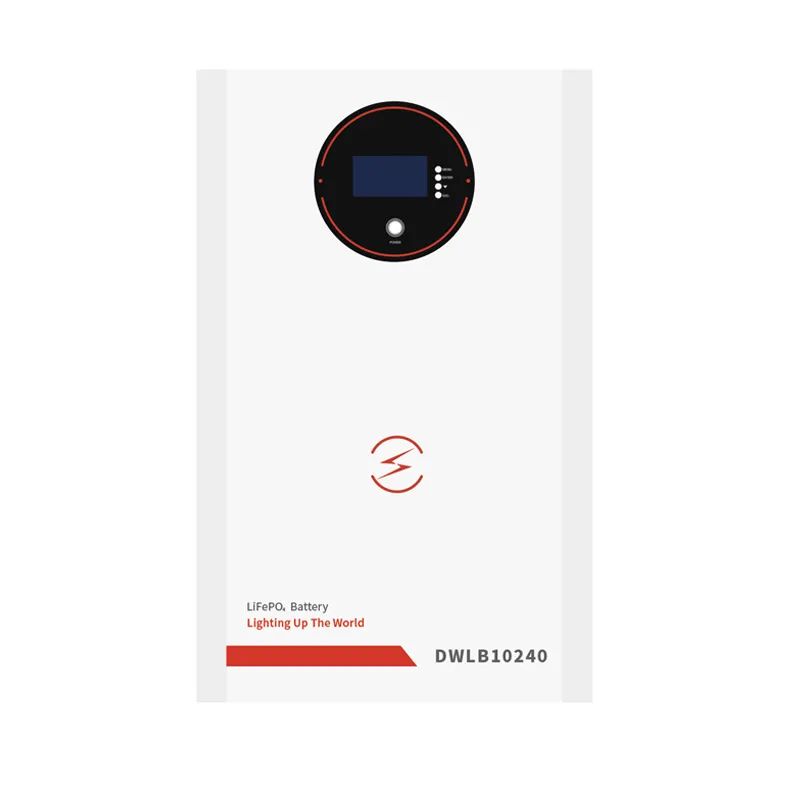

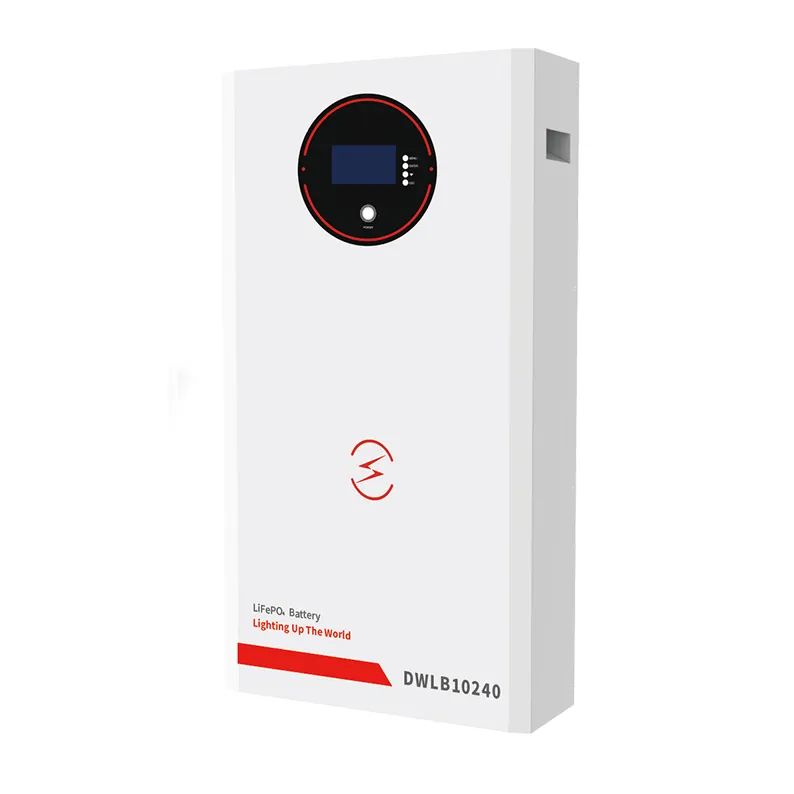

DWLB100M

Energy Capacity: 10240Wh

Rated Capacity: 200Ah

Battery Type: LiFePO4

Charge and Discharge Parameter:

Nominal Voltage: 51.2 V.DC

Min. Discharge Voltage: 44.8 V.DC

Max. Charging Voltage: 58.4 V.DC

Max. Charge And Discharge Current: 100A

Max. Recommended DOD: 95%

General Info:

Communication: CAN / RS485

Bluetooth / WiFi: Optional

SOC Display: LCD

Cycle Life: ≥6000 Cycles @25℃, 0.5C, 90% DOD

Life Span: 20 Years

Cooling: Natural Convection

Transportation: UN38.3, MSDS

Scalability: Up to 15 units in parallel

Environment:

Running State: 5% – 95% RH

Charging: 0℃ to +55℃

Discharging: -20℃ to +60℃

Standard:

Dimensions (WDH): 489.5191.5898.5 mm

Package Size (WDH): 567215955 mm

Net Weight: 88 kgs

Gross Weight: 90 kgs

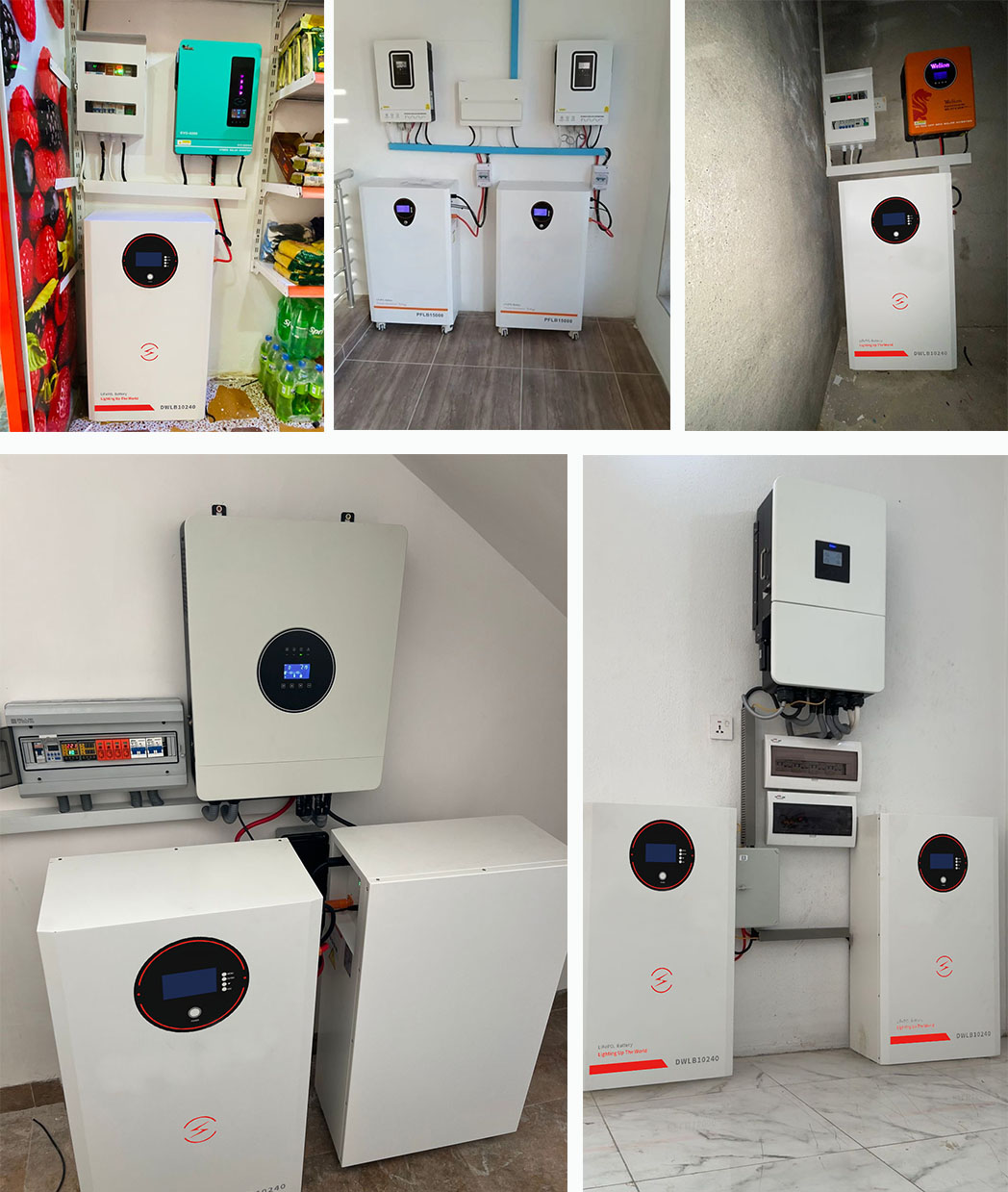

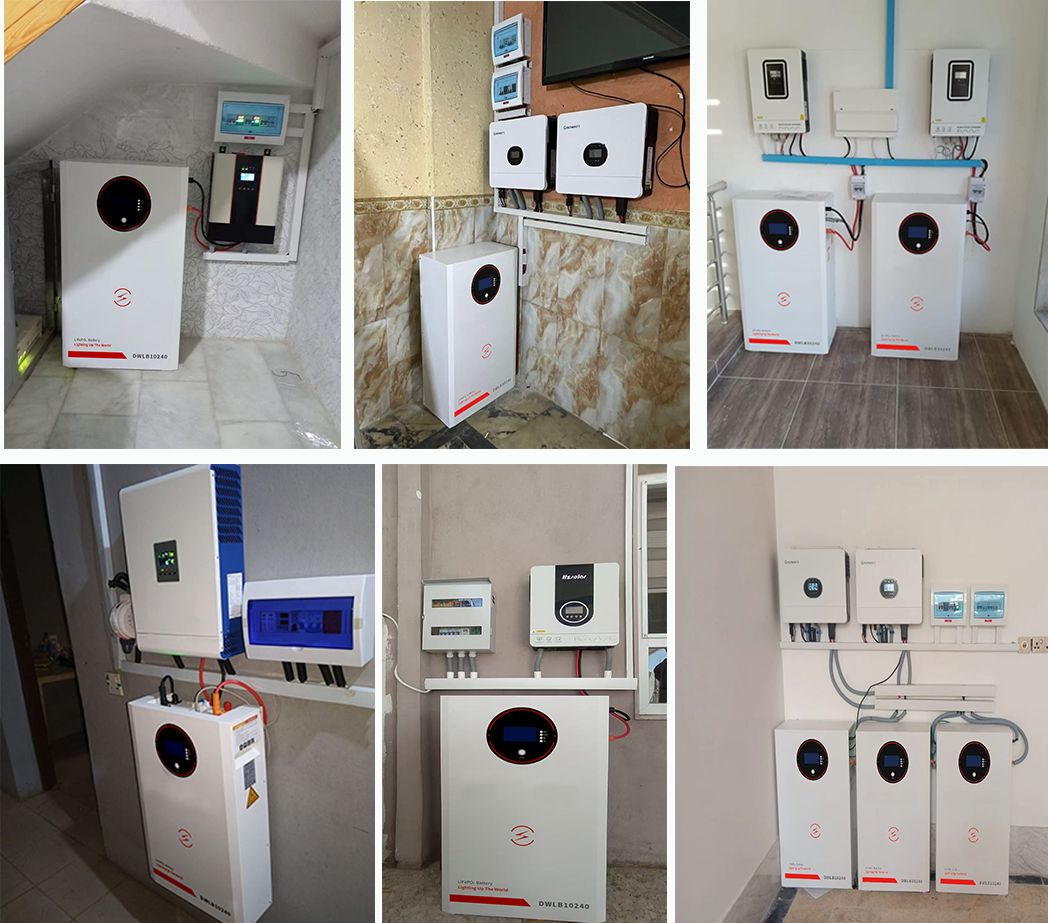

CASES
