| Item | Details (Including Customizable Options) |
| Measurement System | Standard Options: Inch, Metric; Customizable: Can be adjusted according to customer requirements (e.g., exclusive use of Inch/Metric, matching DIN 1480-2005 standard, or adapting to international engineering and shipping industry standard requirements) |
| Material | Standard Options: Carbon Steel (Q235B, 45#), Stainless Steel (304, 316); Customizable: Alloy Steel (40Cr, 35CrMoA), Forged Steel, Weathering Steel, Q345D, etc. (according to customer's requirements for bearing capacity, corrosion resistance, tensile strength and application environment such as marine, outdoor) |
| Grade | Standard Options: Carbon Steel (Class 4.8, 5.8, 8.8), Stainless Steel (A2-70, A4-70), Forged Steel (Class 10.9); Customizable: Non-standard strength grades, special alloy grades, can be customized according to the actual tensile load, adjustment precision and safety requirements of the scene |
| Thread Type | Standard Options: Bidirectional Thread (Left-Hand + Right-Hand), Metric Coarse Thread, Inch Coarse Thread; Customizable: Metric Fine Thread, Thread Accuracy (6H/6g), Thread Pitch, and thread length can be customized according to adjustment range and tensile requirements, complying with relevant standard specifications |

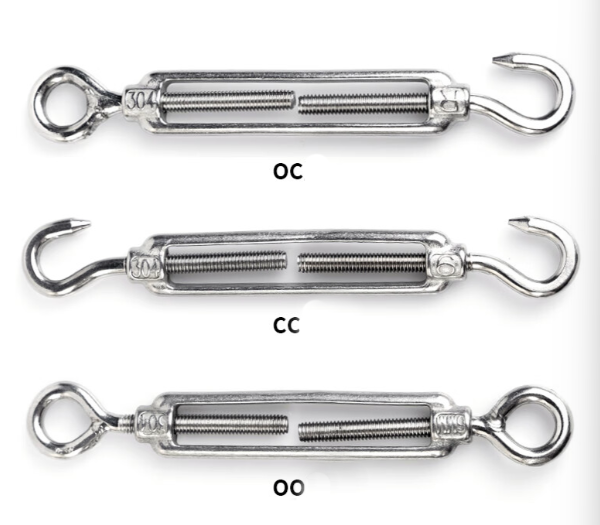

| Head/Structure Style | Standard Options: OO Type (Double Eye, for infrequent disassembly), CC Type (Double Hook, for frequent disassembly), CO Type (One Eye One Hook, for one-end frequent disassembly); Customizable: U-Shaped Head, Threaded Head, Forged Head, Open-Body Type, Closed-Body Type, and head size, eye/hook diameter, body thickness can be customized |
| Finish | Standard Options: Plain, Hot-Dip Galvanized, Zinc Plated (Blue-White Zinc, Color Zinc, Black Zinc), Black Oxide; Customizable: Chrome Plated, Nickel Plated, Epoxy Coating, Anti-Rust Paint Coating, Passivation (Trivalent Chromium), and coating thickness (10-50μm) can be customized to enhance corrosion resistance in marine, outdoor and other harsh environments |
| Model Number | Standard Options: OO Type Turnbuckle, CC Type Turnbuckle, CO Type Turnbuckle, Open-Body Turnbuckle, Forged Turnbuckle; Customizable: Can be customized according to customer's model naming rules (e.g., adding material, grade, specification, structure type, thread type codes to the model number) |
| Place of Origin | Standard Option: Yangzhou, China (Mainland); Customizable: Can be marked according to customer's requirements (consistent with actual production origin, supporting regional origin marking for engineering and shipping projects) |
| Brand Name | Standard Option: Honzen; Customizable: OEM/ODM supported, can print customer's brand logo, brand name, batch number, material grade on the product (consistent with customer's brand authorization and quality management requirements) |
| Specifications | Standard Options (Common Specifications): M6*100, M8*120, M10*150, M12*200, M16*250, M20*300, M24*350, M30*400 (OO/CC/CO Type); Inch Specifications: 3/8"-4", 1/2"-6", 5/8"-8"; Customizable: Thread specification (M4-M56, 1/4"-2"), Total Length (50mm-1500mm), Adjustment Range (20mm-300mm), Eye/Hook Diameter (5mm-44mm), Body Diameter, and non-standard specifications can be customized according to customer's drawings, samples or detailed requirements |
| Hardness | Standard Options: Carbon Steel (HV180-HV350), Forged Steel (HV300-HV500), Stainless Steel (HV150-HV300); Customizable: Hardness range can be adjusted (HV150-HV550) through heat treatment, and can meet the customer's specified hardness test standards and tensile bearing requirements |
| Heat Treatment | Standard Options: Carbon Steel (Annealing, Normalizing), Forged Steel (Hardening, Tempering), Stainless Steel (Annealing); Customizable: Quenching, Carburizing, Nitriding, Stress Relief Annealing, etc., can be customized according to the material, grade and use requirements to improve product strength, toughness, wear resistance and fatigue resistance |
| Function | Standard Options: Tension Adjustment, Wire Rope Tightening, Fixing, Length Compensation; Customizable: Can be optimized according to the use scenario (e.g., Anti-Corrosion Tension Adjustment, High-Load Tension, Vibration-Proof, Anti-Loosening, Theft-Proof, etc.) |
| Range of Application | Standard Options: Construction Engineering (Steel Structure, Bridge, Mast Crane), Shipping & Marine Engineering, Power Station, Railway, Highway, Outdoor Decoration, Garden Windproof, Agricultural Greenhouse, Cargo Binding; Customizable: Can be customized according to the customer's field (e.g., Aerospace, High-Voltage Tower, Heavy Machinery, Logistics Binding, etc.) |
| Sample | Standard Option: Available free within 7 days (standard specifications, 1-3pcs per model); Customizable: Customized samples can be provided, sample delivery time can be adjusted (3-10 days) according to the complexity of customization (e.g., special structure, special thread), sample quantity can be negotiated, and sample cost can be refunded after bulk order placement |
| Bulk Lead Time | Standard Option: 15~25 days (standard specifications, order quantity ≤ 5000pcs); Customizable: Lead time can be adjusted (10-40 days) according to the order quantity, customization complexity (e.g., large-size, special structure), material procurement and production schedule, and urgent orders can be prioritized with expedited production |
| Reliability Test | Standard Options: Mechanical dimensions test, hardness test, Salt spray endurance test, Thread accuracy test, Tensile strength test, Adjustment flexibility test; Customizable: Fatigue test, Impact test, Corrosion resistance test (neutral salt spray, acid salt spray), Load-bearing test, Welding strength test, Non-destructive testing, etc., can be customized according to customer's test standards (e.g., ISO, DIN, GB, ANSI) and quality requirements |
| Packaging | Standard Options: Anti-Rust Paper + PE Bag + Wooden Case/Carton, 50pcs/100pcs/200pcs per bag, wooden case size customized according to order quantity (anti-collision, anti-rust); Customizable: Waterproof Packaging, Anti-Corrosion Packaging, Logo Printing on Packaging, Labeling (with product parameters, batch number, production date, material grade), and packaging quantity, size can be customized according to customer and transportation requirements |
| Certification | Standard Options: ISO9001 Quality Management System Certification, GB/T Standard Certification; Customizable: Can provide product certification (e.g., RoHS, REACH, CE) according to customer requirements, and customize test reports, quality inspection certificates, material qualification certificates for project acceptance |
